| Brand Name : | Autonics |

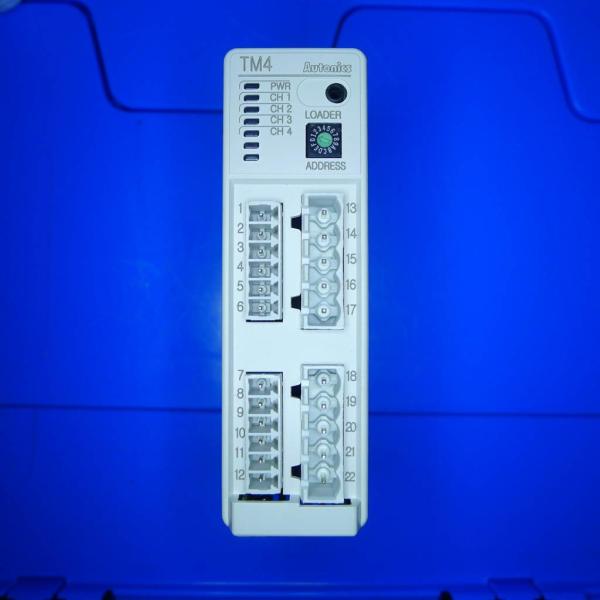

| Model Number : | TM4-N2SB |
| Payment Terms : | T/T |
| Delivery Time : | 5-8 working days |
Data Sheet
| Display Method | Non-display |
| Control Method | ON/OFF control, P, PI, PD, PID control |
| Number of Input Channels | 4- channel |
| Input Specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR),
N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, JPt100Ω |
| Sampling Cycle | 100ms(4-CH synchronous sampling) |
| Control Output | SSR drive (22VDC) [ON/OFF] |
| Option Output | RS485 communication |
| Module Type | Expansion module |
| Power Supply | 24VDC |
| Measurement Accuracy_Thermocouple | (PV ±0.5% or ±1℃, select the highter one) ±1-digit max. |
| Measurement Accuracy_RTD | (PV ±0.5% or ±1℃, select the higher one) ±1-digit max. |
| Hysteresis (adjustable sensitivity) | 1 to 100℃/℉(0.1 to 100℃/℉) variable |
| Proportional Band | 0.1 to 999.9℃/℉ |
| Integral Time | 0 to 9999 sec |
| Derivative Time | 0 to 9999 sec |
| Control Period | 0.1 to 120.0 sec(only for relay output, SSR drive output) |
| Manual Reset | 0.0 to 100.0% |
| Insulation Type | Double insulation or reinforced insulation (dielectric strength between the measuring input part and the power part: 1kV) |
| Environment_Ambient Temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient Humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight_Expansion Module | Approx. 231g(approx. 166g) |
※The expansion module does not supply power/comm. terminal. Order
it with the basic module.
※In case of thermocouple K, J, E, T, N, it is below -100℃ and L, U,
Platinel II, it is below ±2℃ ±1-digit.
In case of thermocouple B, display accuracy cannot be ensured under
400℃.
In case of thermocouple R, S, it is below 200℃ and C, G, it is max.
3℃ ±1-digit.
※Influence of temperature: Applied when it is for out of room
temperature (23±5℃) range.
※The weight includes packaging. The weight in parenthesis is for
unit only.
※Environment resistance is rated at no freezing or condensation.
S.no Description
LEAD PART
NUMBER Model/part number Quantity Reference photos
1 Cell Cassette Loading Conveyor belt 20341-02-011 4
2 Cell Cassette unloading Conveyor belt 20341-02-032 2
3 Cell transfer conveyor belt for CCD 135052275 4
4 Cell transfer motor timing belt for CCD 2
5 Cell loading vacuum sucker cups 50
6 Flux needles 1 box
7 Robot vacuum cups 30
8 Welding conveyer belt 2
9 Welding pressing Jig with along pressing Pins (set) 2 sets
10 String unloading conveyor belt 20232-31-070 2
11 String Layup unloading conveyor belt 135054418 1
12 string unloading travel vacuum cups 150
13 IR lamps 12
14 welding pressing pins and springs 200
15 lamp clamps sets 24 sets
16 String cutter conveyer belt 4
17 String cutter timing belt 2
18 Cassette detect sensor 4
19 Welding conveyer Heaters tubes 20232-31-070 20
20 Airtec Cylinder reed switches 50
21 Welding conveyer thermocouples 15
22 SSR 5
23 Flex spay solenoid Coils 131020531 2
24 Ribbon pincer clamp cylinders 131030589 5
25 Ribbon pincer 5
1 180 degrees Slipping rotation unit for Cell pickup 119010213 1
2 Unloading unit vacuum pump(OEION) KRX5-P-V-03, KRX5-P-TV 2
3 Photo micro sensors Omron (E3Z-D61) 10
4 Flux solenoid valve 4
5 Delta VFD (INOVANCE) MD200S0.75B 2
6 Yamaha Robot YK600XG 1
7 Yamaha Robot controller RCX340 1
8 Omron 4 way relay Omron 08817E7 4
9 Omron PLC Power supply PA3001 1
10 Omron PLC CPU NJ501-1400 1
11 Omron A/D card AD081-V1 1
12 Omron D/A card DA08V 1
13 Omron D/A card DA041 1
14 Omron I/D card ID261 1
15 Omron O/D card OD261 1
16 Servo drive (SUZHOU INOVANCE TECHNOLOGY CO.LTD)
IS620NS5R5I-MC705 3
17 Servo motor (inova) (Unloading Horizontal, Vertical,
Welding conveyor belt, cell 180 degrees rotation motor)
ISMH4-75B30CB 3
18 Servo motor (INOVA)(Ribbon Pull Clamp-1 & 2) ISMH1-75B30CB 3
19 Servo Motor (inova) (string unloading conveyor) ISMH1-40B30CB 1
LDTS4000 Model required consumable parts for quarterly basis
LDTS4000 Model required Recommended parts for yearly basis
20 servo drive regester (Inovance) SH220-10 5
21 Stepper motor drive (Moons ST) Ribbon guide MWST10-Q-RN 2
22 Stepper motor(Moons) Ribbon Guide 2
23 Ribbon motor drive (Moons) Ribbon release, cell 180
degrees rotational MSST10-S-LH02 5
24 Ribbon motor (Moons)Ribbon release, cell 180 degrees
rotational AM34HD1404-06 5
25 Cell loading, unloading conveyor motor drive (TPG) CA-201A 1
26 Cell loading, unloading conveyor Gear motor (TPG)
AFV-17-0060-030S 1
27 Temp control (Autonics) TM4 1
28 Terminal blocks (siron) T024 10
29 12v DC power supply (meanwell) LRS-50-12 2
30 24v DC power supply (meanwell) SE-1000-24 4
31 24v DC power supply (meanwell) LRS-200-24 1
32 Vacuum display meter SMC-ZSE40AF-01-R 4
33 Robot Vacuum Generator Unit SCHMALZ(SCPSB 10 SO4 NC) 1
34 Optical sensor (Omron) E3X-HD 4
35 MSEP Stepper motor controller MSEP Unit 1
36 HMI (PC) with program (NODKA)
TPC6000-8172TLA-G4XD-
3470-4G-SSDI28G 1
|
|
